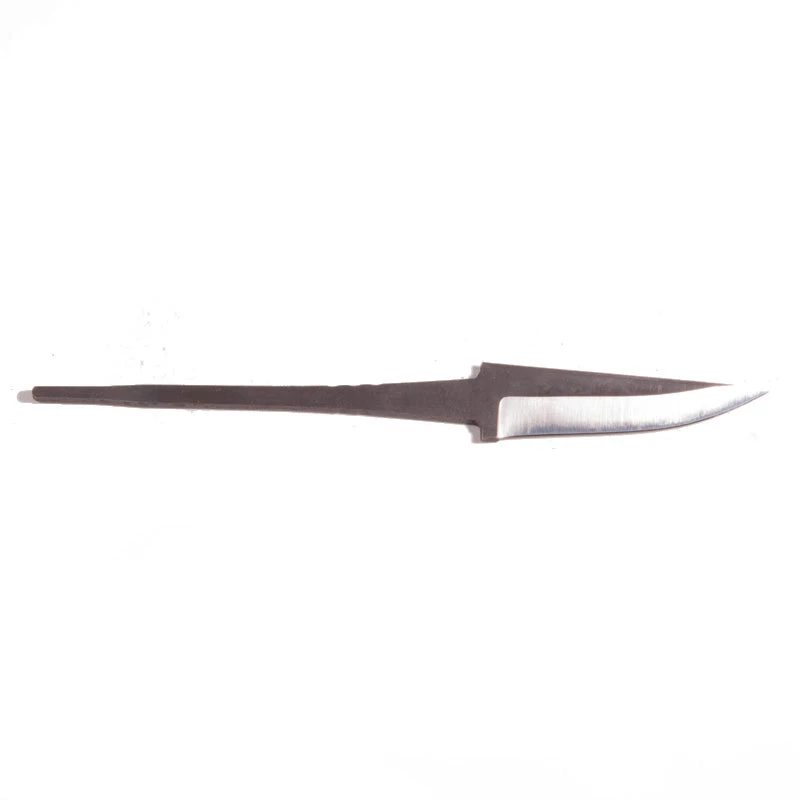

Laurin Carving 80mm With Ricasso Blade

Click here for more details on Laurin blades and fittings!

This would be a good blade for a medium-sized puukko knife. The ricasso (the squared portion ar the base of the blade) is not traditional, but does make it easier to get a tight fit between the base of the blade and the bolster/guard, which is important because you don’t want any moisture getting inside your handle.

Below are the detailed measurements of this blade:
  Overall Length: 7.75 inches (19.7 cm)
  Blade Length: 3.25 inches (8.3 cm)
  Blade Width: 0.65 inches (1.7 cm)
  Blade Thickness: 0.11 inches (2.8 mm)
  Ricasso Width: 0.67 inches (1.7 cm)
  Ricasso Thickness: 0.12 inches (3 mm)
  Blade Weight: 1.4 ounces (40 grams)
  Tang Length: 4.5 inches (11.4 cm)
  Tang Thickness: 0.11 inches (2.8 mm)
  Tang Width (At Blade): 0.41 inches (1 cm)
  Tang Width (At End): 0.16 inches (4.1 mm)
  Blade Material: carbon

Here are the fittings that this blade can be paired with, based on the sizes of the blade, tang, and slot. Any fitting labelled “might be too small/big” will still fit the blade, but might not be a good match depending on the style of knife that you’re making.

  Ferrule 11mm x 17mm Brass Straight: might be too small
  Ferrule 11mm x 17mm Nickel Straight: might be too small
  Ferrule 13mm x 18mm Brass Straight: might be too small
  Ferrule 13mm x 18mm Nickel Straight: might be too small
  Ferrule 15mm x 23mm Brass Straight: slot is a bit too small, will need to be filed wider/longer
  Ferrule 15mm x 23mm Nickel Straight: slot is a bit too small, will need to be filed wider/longer
  Bolster 15mm x 22mm Brass Straight: might be too big
  Bolster 15mm x 22mm Nickel Straight: might be too big
  Bolster 16mm x 24mm Brass Straight: might be too big
  Bolster 16mm x 24mm Nickel Straight: might be too big
  Bolster 18mm x 27mm Brass Straight: might be too big
  Bolster 18mm x 27mm Nickel Straight: might be too big
  Bolster 18mm x 35mm Brass Straight: might be too big
  Bolster 18mm x 35mm Nickel Straight: might be too big
  Bolster 19mm x 30mm Brass Straight: might be too big
  Bolster 19mm x 30mm Nickel Straight: might be too big
